Introducing the BD-50 Portable Line Boring Machine
Discover the essential features of our line boring machine!
The BD-50 portable line boring machine extends its reach within the bore, ensuring maximum resilience and a superior surface finish.
Key Specifications:
Our portable line boring machines are versatile, capable of re-drilling articulating joints, tool buckets, pivot points, wheel loader arm pin holes, and steering axle sleeves. Enjoy the precision of field machining repairs on-site, minimizing downtime and maximizing productivity.
Applications:
Ideal for heavy construction equipment like loaders and cranes, our line boring machines offer cost-effective and efficient solutions. Powerful, adaptable, and user-friendly, they’re available with both hydraulic and pneumatic drives, ensuring accurate bore measurements.
Key Features:
- International shipping for worldwide accessibility.
- Dedicated customer service for a seamless experience.
- Reliable performance guaranteed.
- Best prices for unbeatable value.
- Energy-saving design for sustainability.
- Easy installation and handling for convenience.
Unique Features:
- Engine-coupled transmission for enhanced power and reliability.
- Hardened gears with 55 HRC for increased durability.
- Lightweight yet sturdy construction for easy setup.
- Electronic panel for precise control over sensitivity and power.
- Modular design for effortless installation and transportation.
- 600-hour working guarantee for peace of mind.
- Thermally hardened construction for long-lasting performance.
Elevate your equipment repair process with the BD-50 portable line boring machine, designed for efficiency, reliability, and precision.
Technical information and evaluation
Bar shaft diameter: 50 mm.
In-hole machining diameter (boring): From 52mm to 450mm.
In-hole machining diameter (welding): From 65mm to 450mm.
Bar shaft turn motor:
AC Servo Motor – Voltage:230VAC
Min: 0.20 Rpm. (rev/min.) – Max: 225 Rpm. (rev/min.)
Bar shaft Forward and reverse motion motor:
DC Servo Motor – Power:90Watts, Voltage:24VDC
Speed Range min: 0.05mm/min – max: 95mm/min
Stroke : 230mm.
● Wide speed range, flat torque
● Excellent speed stability
● Compact and high power
● High efficiency and energy-saving
Working voltage:
230VAC 50/60 hz – 10 Amp.

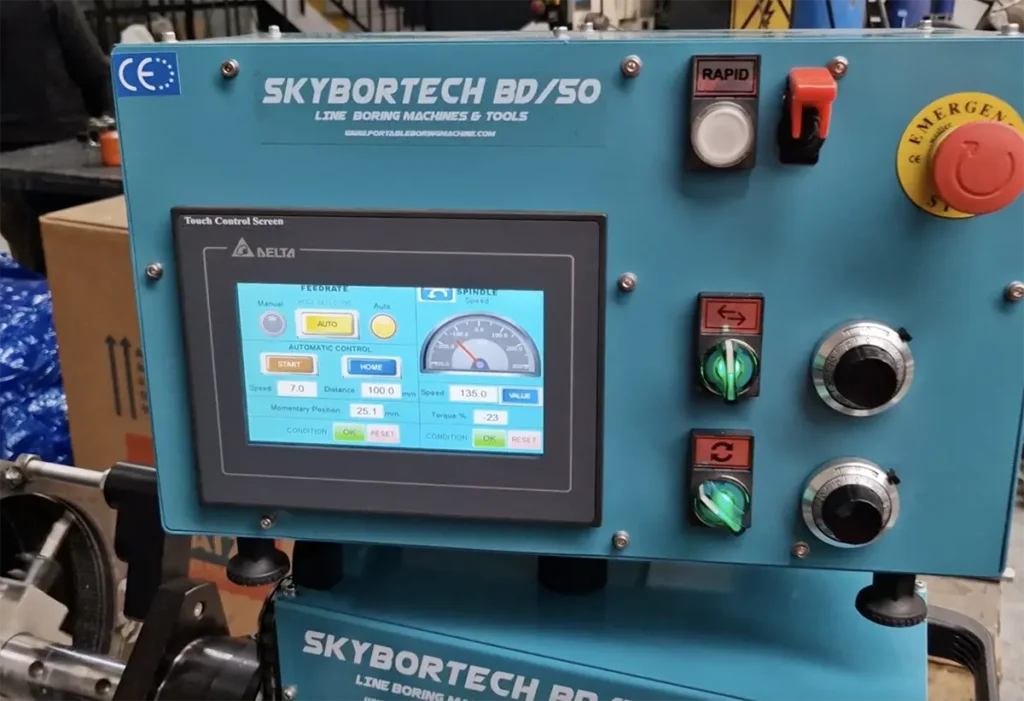

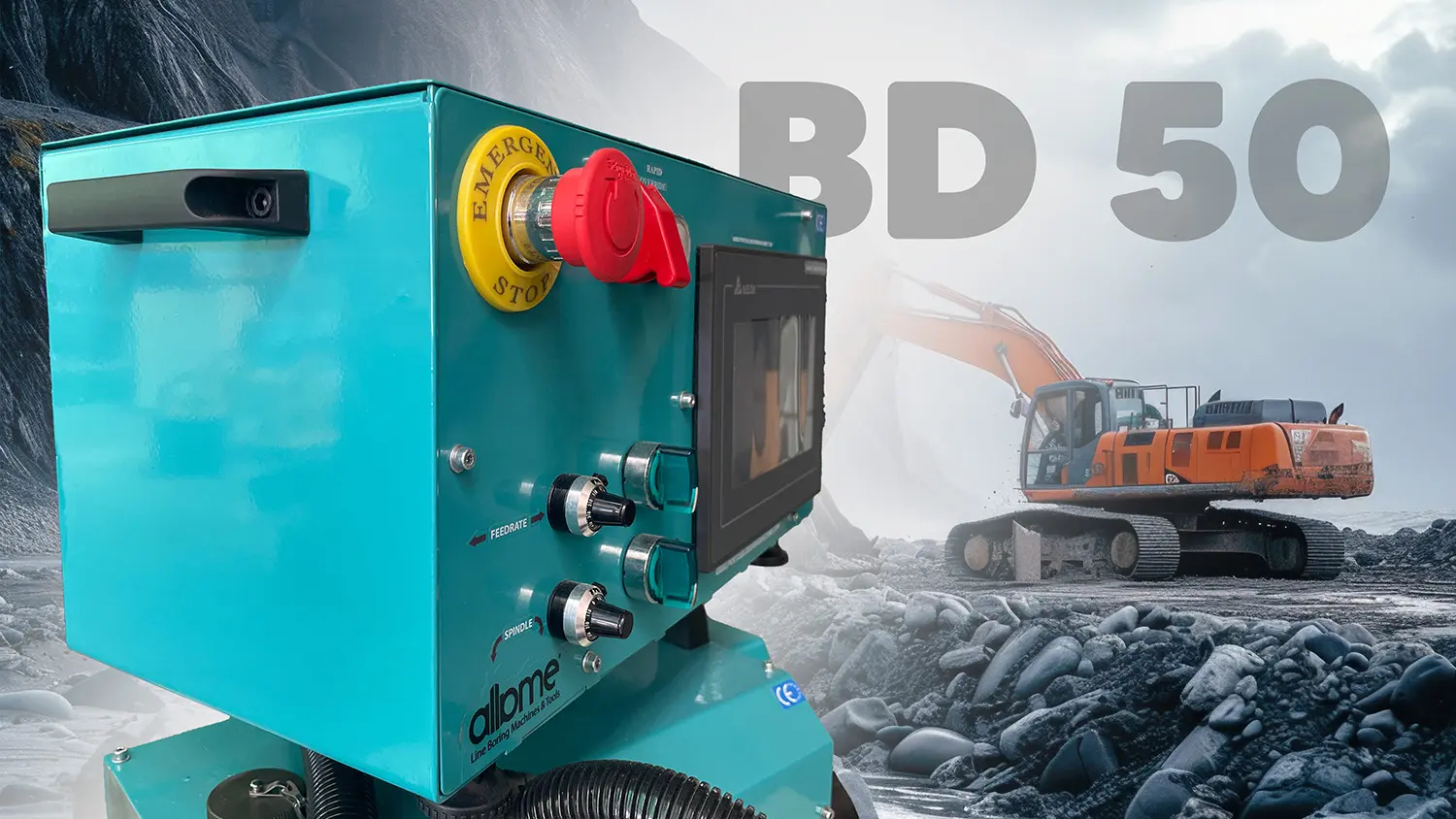

Control circuit devices and switching elements :
● Start / Stop switch
● Emergency button
● Toggle switches(Right left rotation switch/stepping)
● Emergency button
● Speed/cyclic control knob
● Move back and forth stepping switch
● Fast motion button
● Reset button

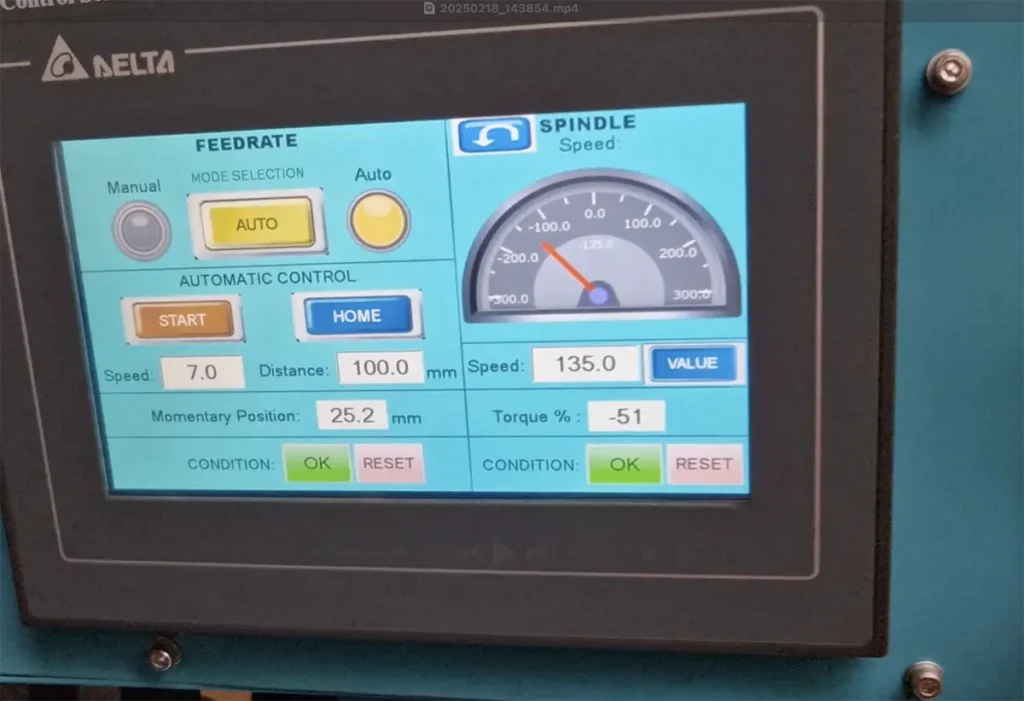

● Control screen

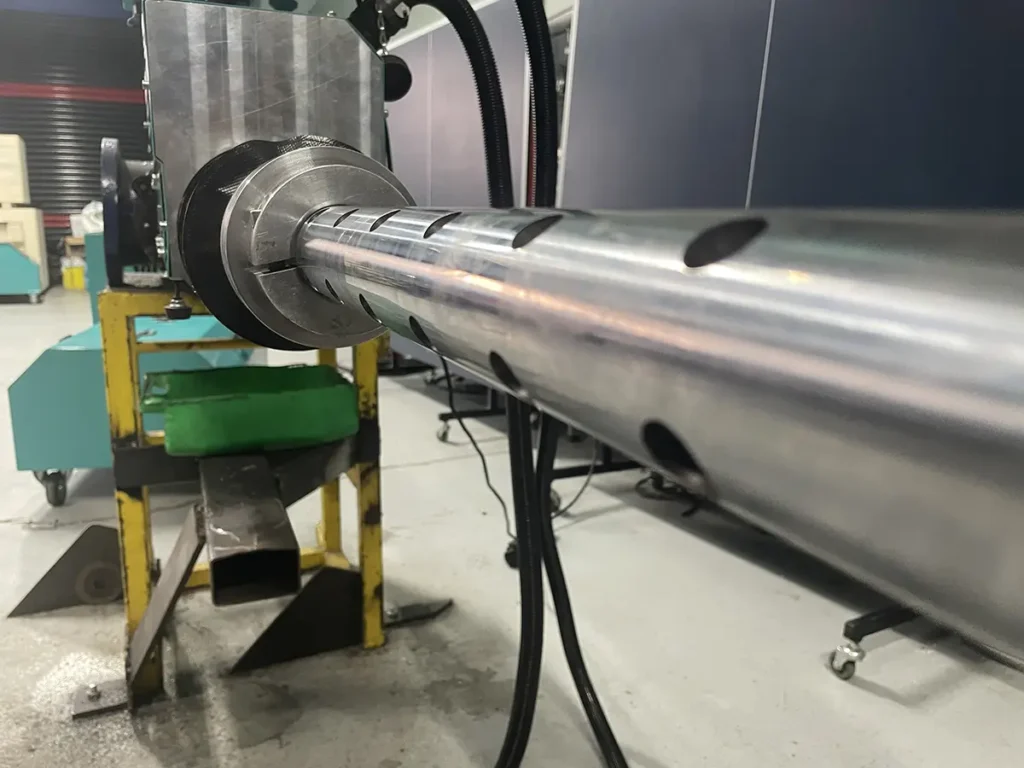

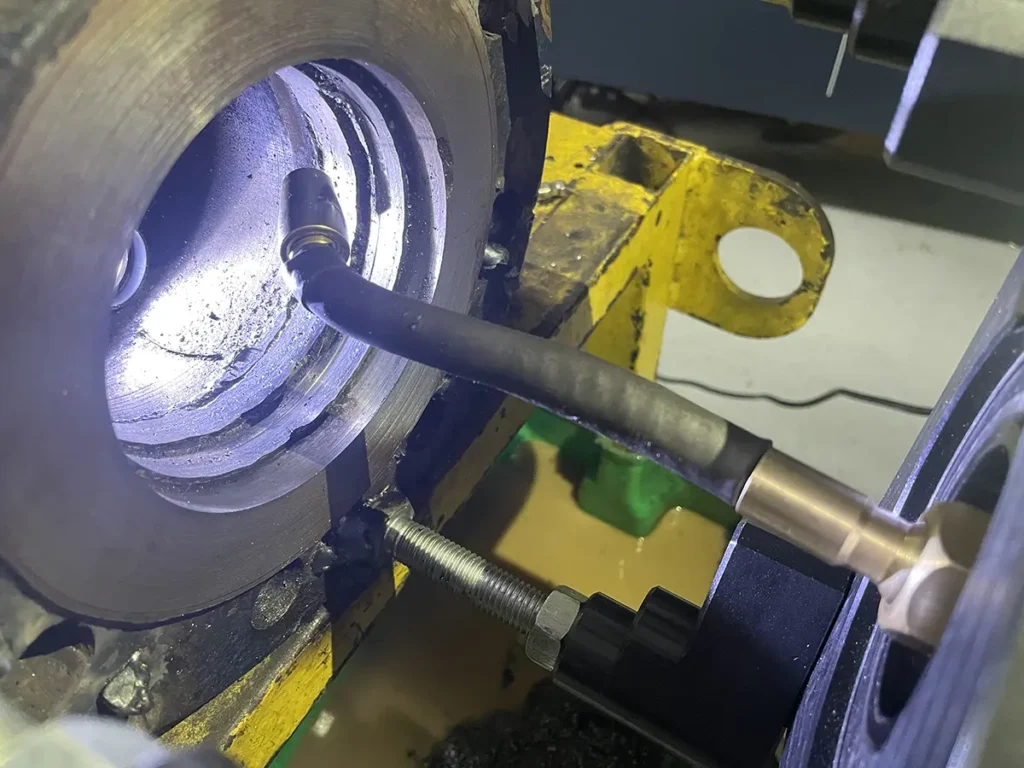

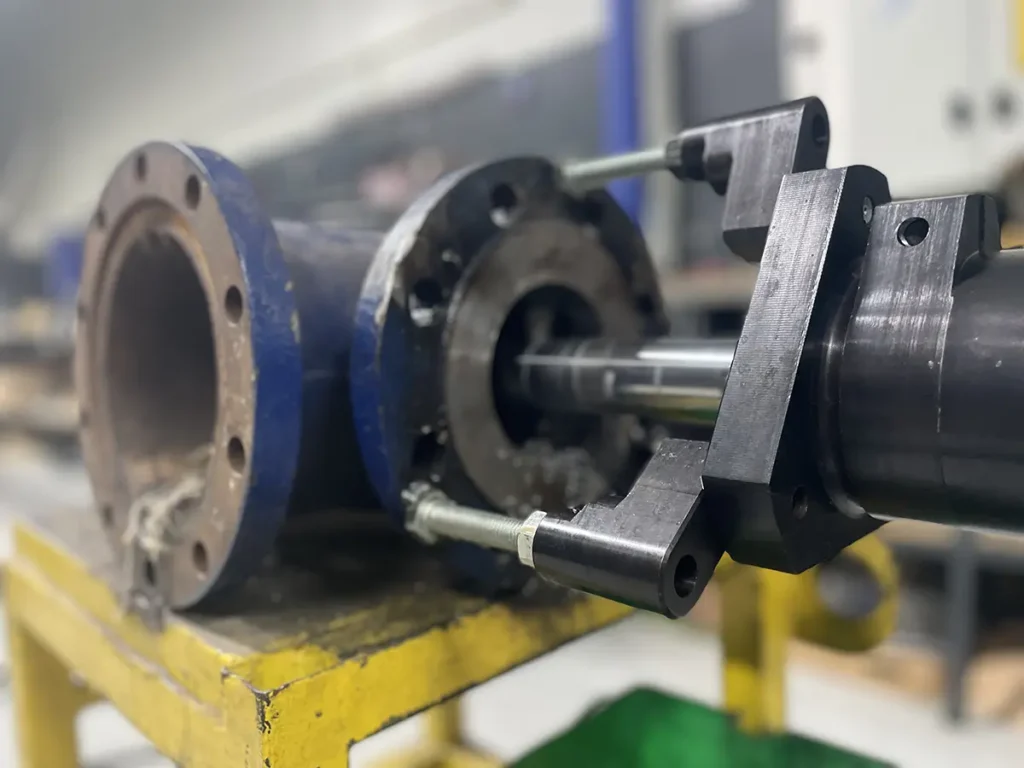

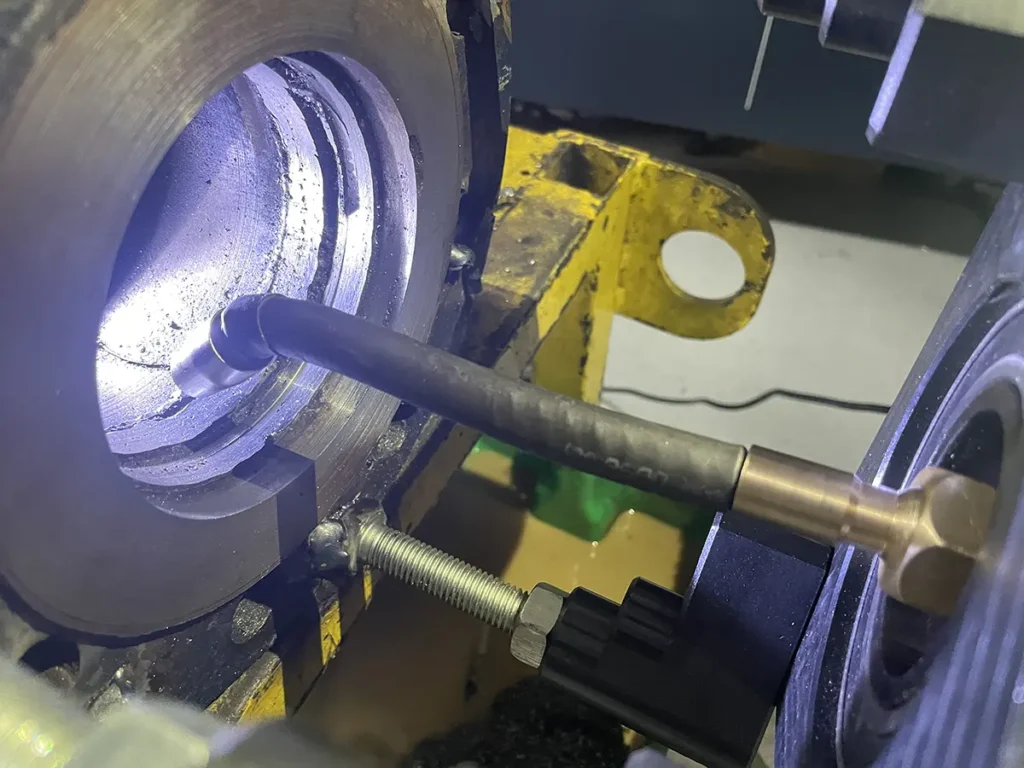

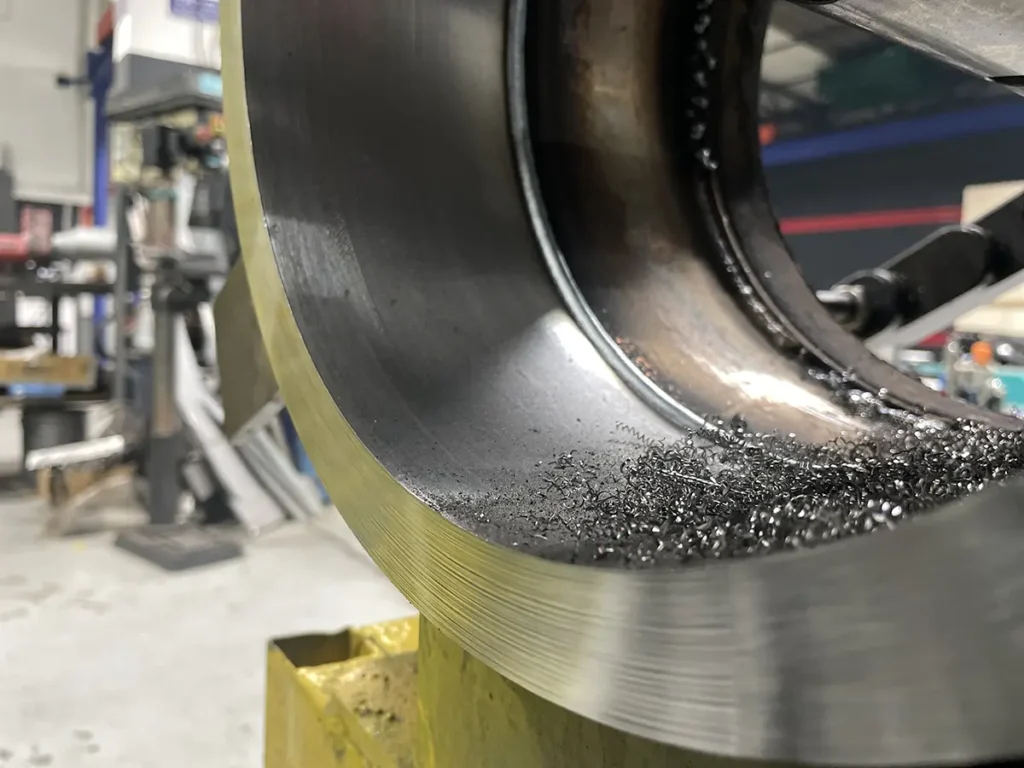

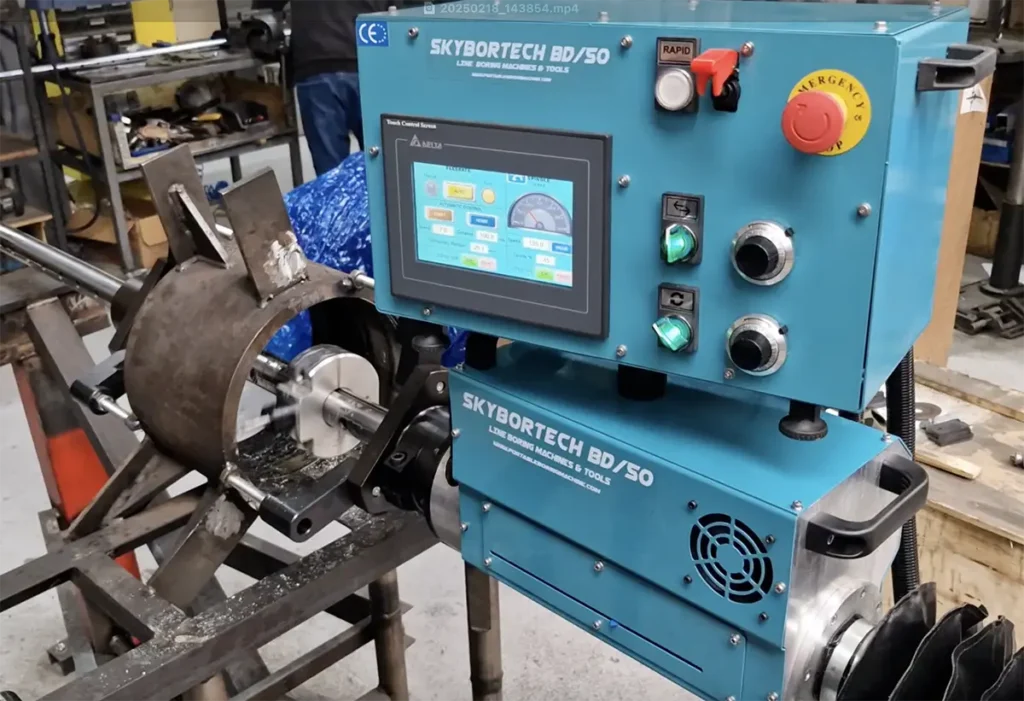

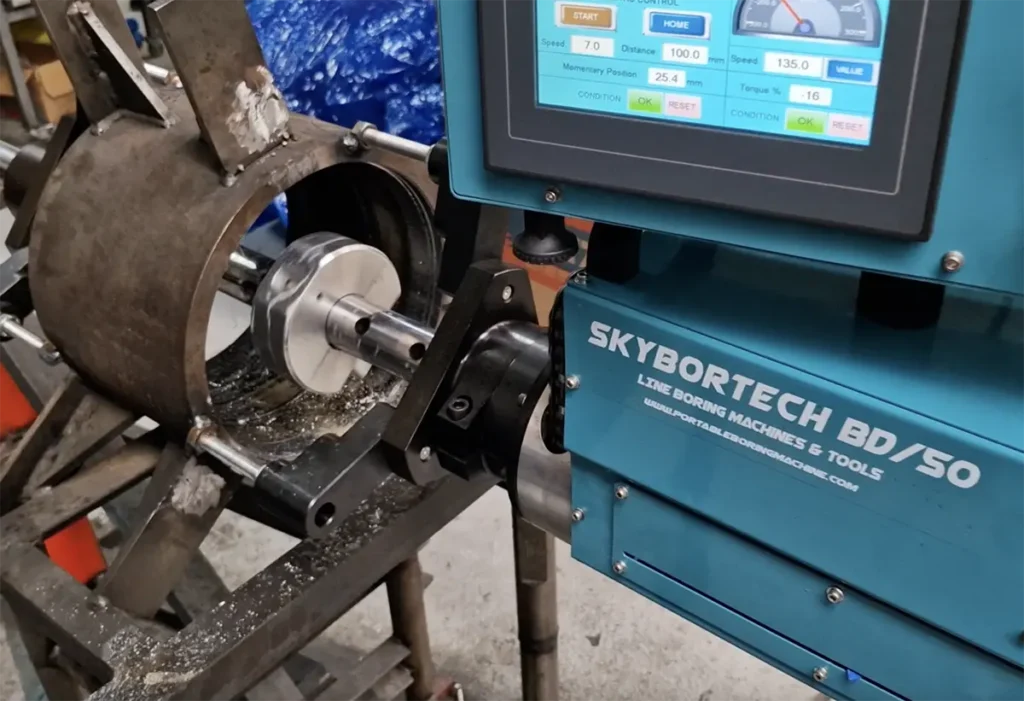

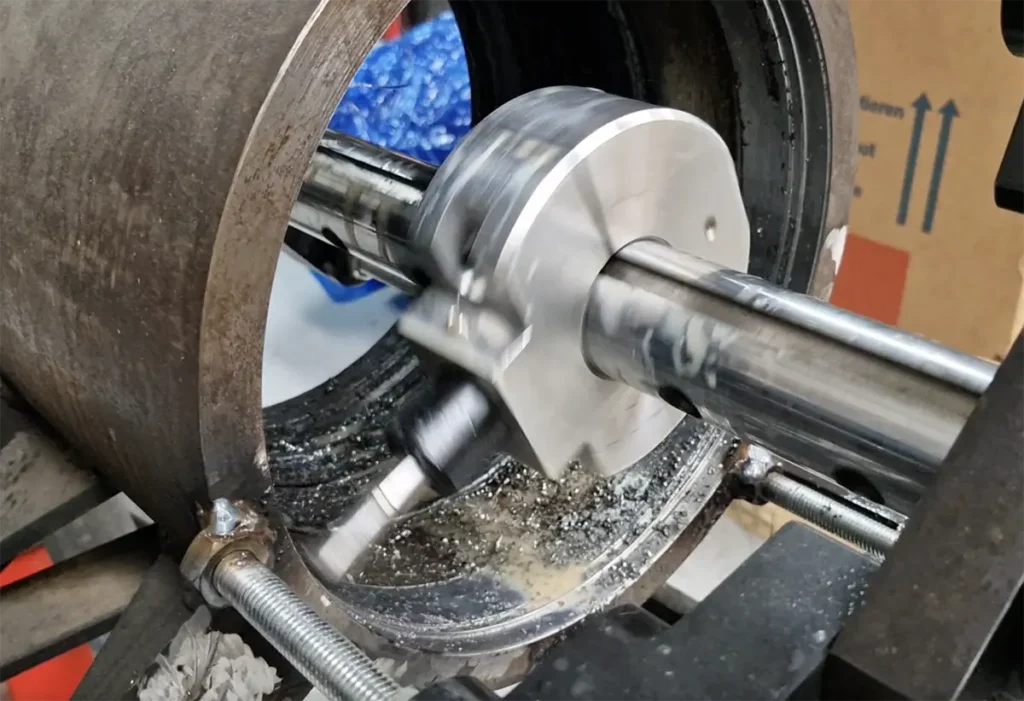

Photos for BD50 Line Boring Machine
