Your Solution for Efficient Machinery Repairs
Portable Line boring machine and welding machines are indispensable for equipment repairs, offering a versatile solution for restoring large bores. At SKYBORTECH, we are proud to introduce the BD 40 Portable Boring Machine, designed to streamline the repair process and deliver exceptional results. Let’s explore the key features and capabilities of this innovative machine.

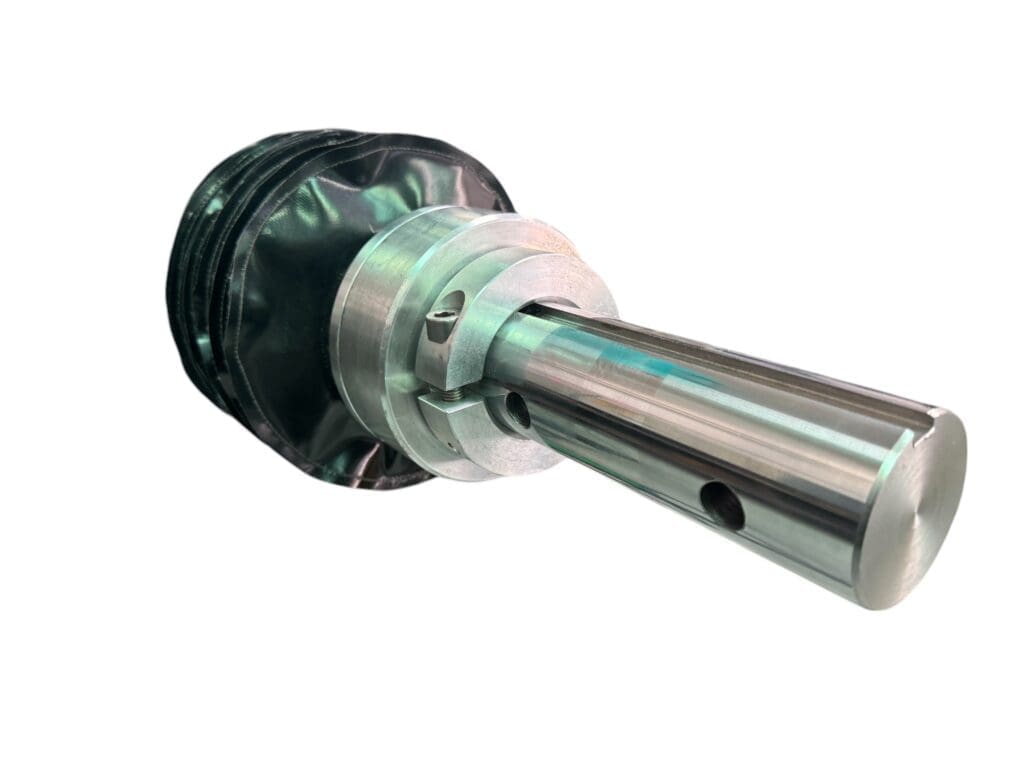

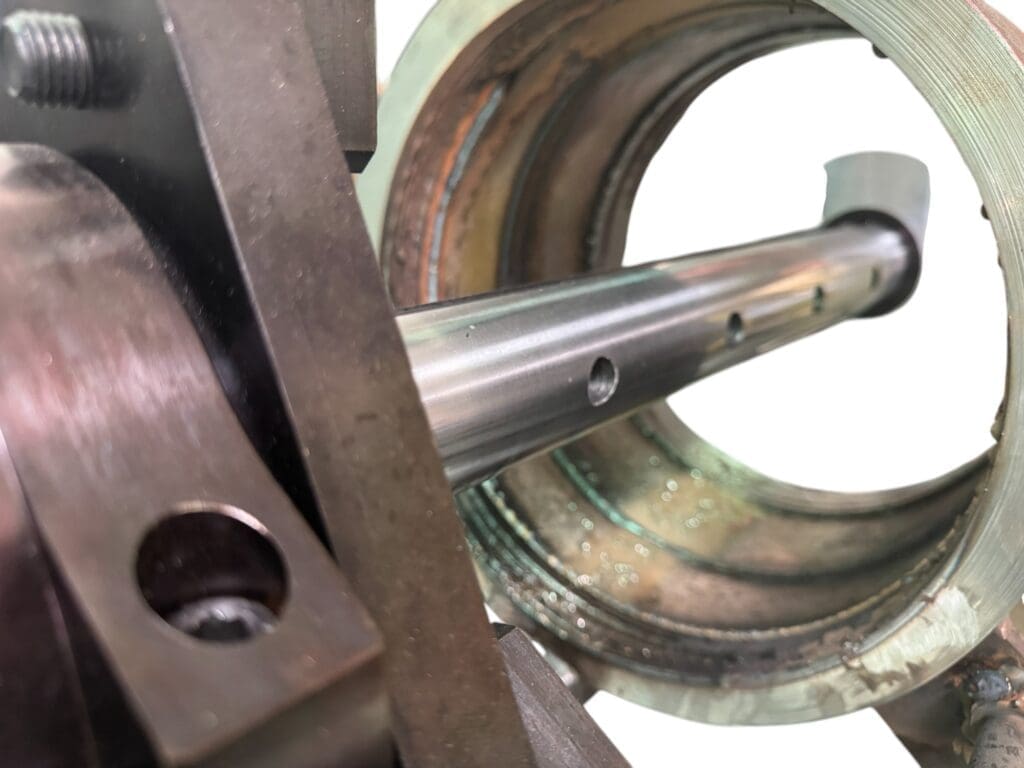

Boring Bar Assembly: Precision Restoration
At the heart of the BD 40 is the boring bar assembly, meticulously crafted to ensure precision restoration of damaged bores. Equipped with cutting-edge cutting tools, this component effortlessly removes material, restoring bores to their original specifications. With various sizes available, the boring bar assembly accommodates a wide range of bore diameters and lengths, offering versatility for diverse repair applications.
Welding Head Assembly: Seamless Integration
The BD 40 features a welding head assembly that seamlessly integrates line boring and welding capabilities. With a high-performance welding torch, this assembly allows for the deposition of filler material, effectively repairing worn or damaged surfaces. Whether it’s line boring or welding, the BD 40 delivers comprehensive repair solutions with ease and efficiency.
Power Unit: Reliable Performance
Powered by a robust hydraulic system, the BD 40 ensures reliable performance throughout the repair process. The hydraulic power unit generates the necessary force for cutting and welding actions, ensuring consistent and efficient operations. With its reliable power source, the BD 40 tackles repair tasks with precision and accuracy.
Control System: Enhanced Precision
Equipped with an advanced control system, the Line Boring Machine BD 40 offers enhanced precision and ease of operation. Operators can adjust parameters such as feed rate and spindle speed with intuitive controls, ensuring optimal results with every repair. The user-friendly interface and digital readouts empower operators to monitor and adjust settings for maximum efficiency.
Stabilization Equipment: Optimal Stability
Stabilization equipment is integral to maintaining stability and accuracy during repair operations. The BD 40 comes equipped with support brackets and clamps that secure the machine in place, minimizing vibrations and maintaining alignment. With optimal stability, the BD 40 ensures precise machining for superior repair results.
Technical Information and Evaluation
Portable boring machines are widely used in cranes, excavators, bulldozers, tractors, offshore platforms, ship machines, storage tanks, and more.
The BD 40 boasts a bore shaft diameter of 40mm and in-hole machining diameters ranging from 42mm to 400mm for boring and 65mm to 400mm for welding.
Bar shaft turn motor:
AC Servo Motor – Voltage:230VAC
Min: 0.20 Rpm. (rev/min.) – Max: 225 Rpm. (rev/min.)
Bar shaft Forward and reverse motion motor:
DC Servo Motor – Power:90Watts, Voltage:24VDC
Speed Range min: 0.05mm/min – max: 95mm/min
Stroke : 230mm.
● Wide speed range, flat torque
● Excellent speed stability
● Compact and high power
● High efficiency and energy-saving
Working voltage:
230VAC 50/60 hz – 10 Amp.
Control circuit devices and switching elements :
● Start / Stop switch
● Emergency button
● Toggle switches(Right left rotation switch/stepping)
● Emergency button
● Speed/cyclic control knob
● Move back and forth stepping switch
● Fast motion button
● Reset button

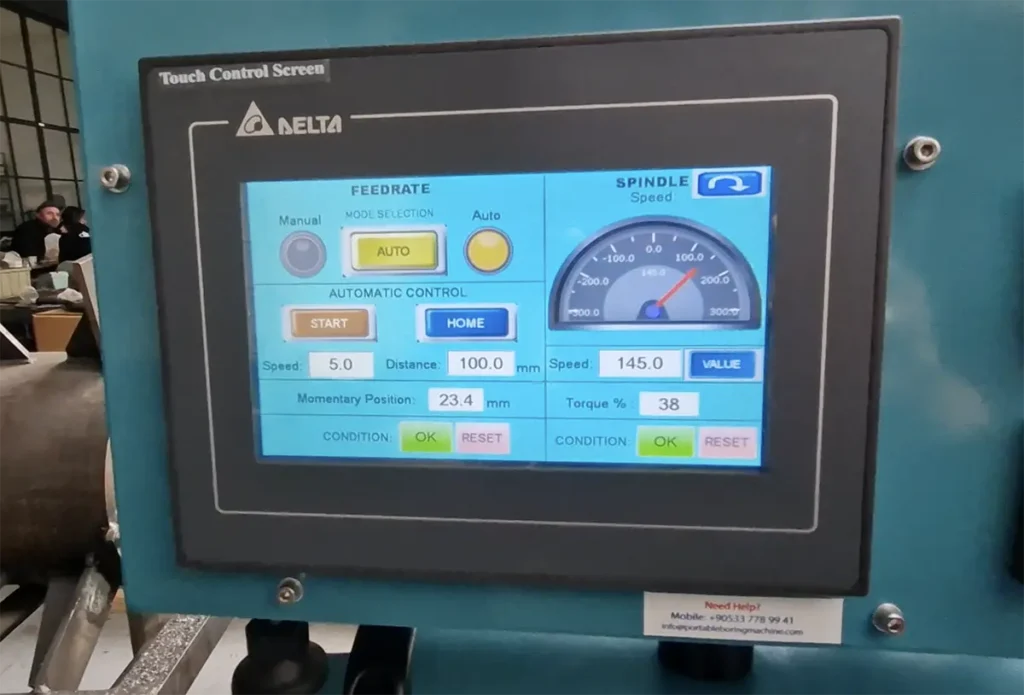

● Control screen
Safety Features: Prioritizing Operator Safety
Safety is paramount in every repair task, and the BD 40 prioritizes operator safety with a range of safety features. Emergency stop buttons, protective covers, and safety interlocks ensure a safe working environment, minimizing the risk of accidents or injuries. With comprehensive safety features, operators can perform repairs with confidence and peace of mind.
Elevating Repair Efficiency
The BD 40 Portable Boring Machine is your ultimate solution for efficient machinery repairs. With its advanced features and capabilities, it simplifies the repair process, delivering exceptional results with precision and reliability. Whether it’s restoring bores or repairing surfaces, the BD 40 empowers operators to achieve superior repair outcomes, prolonging the lifespan and functionality of valuable equipment.

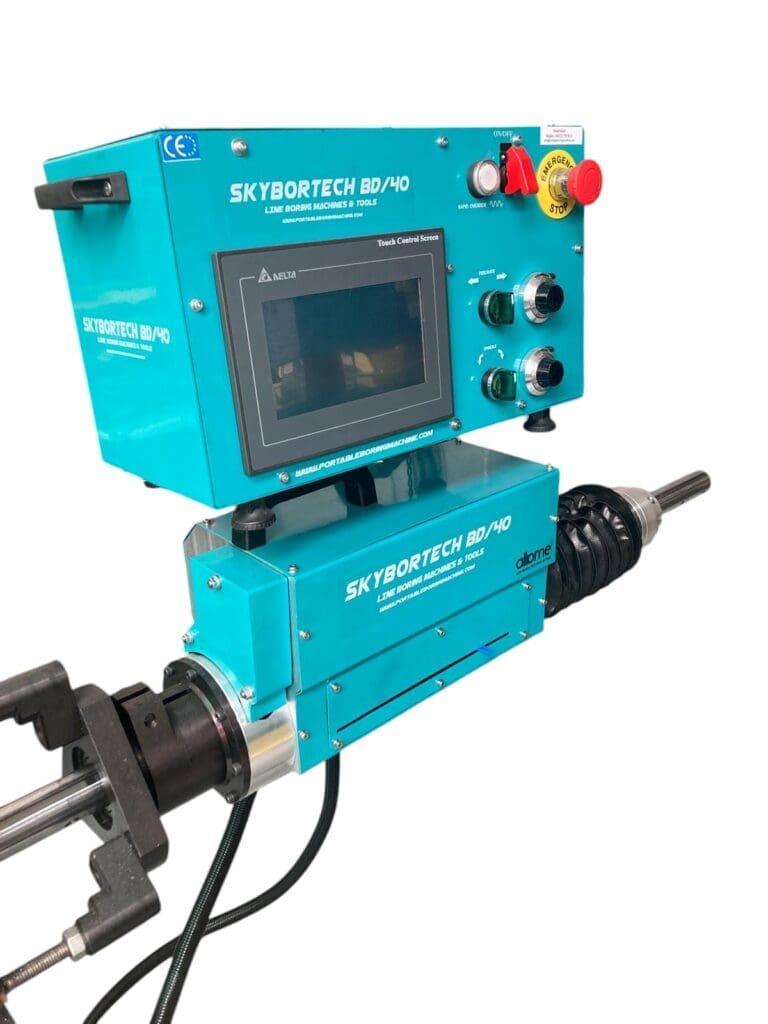

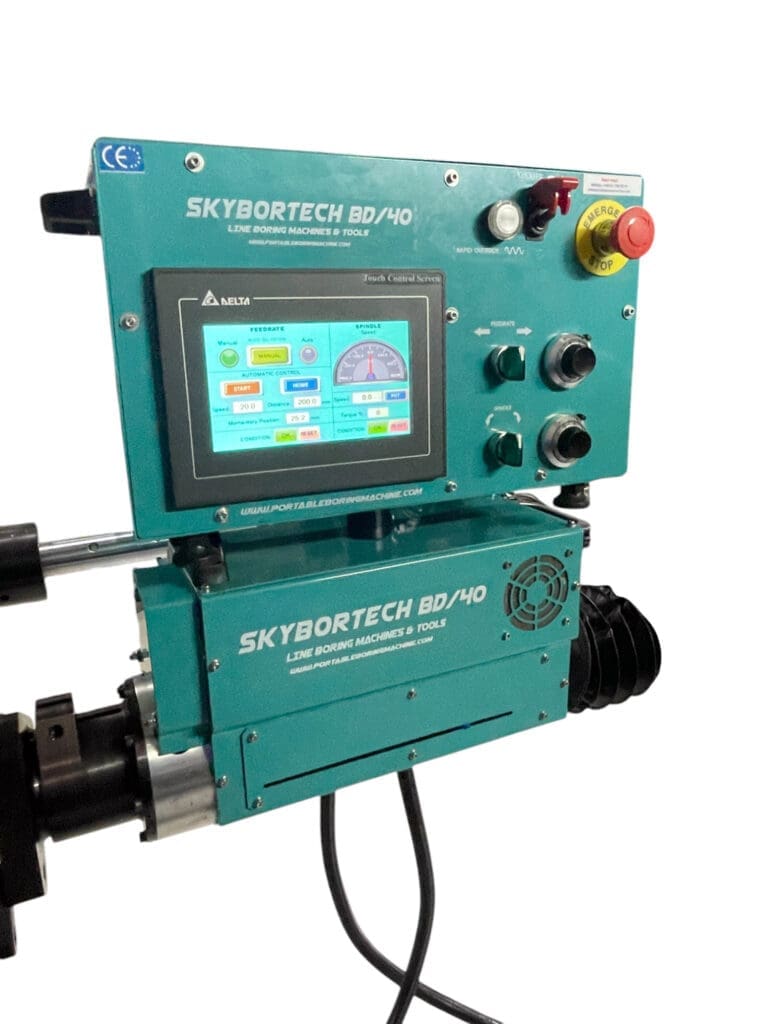

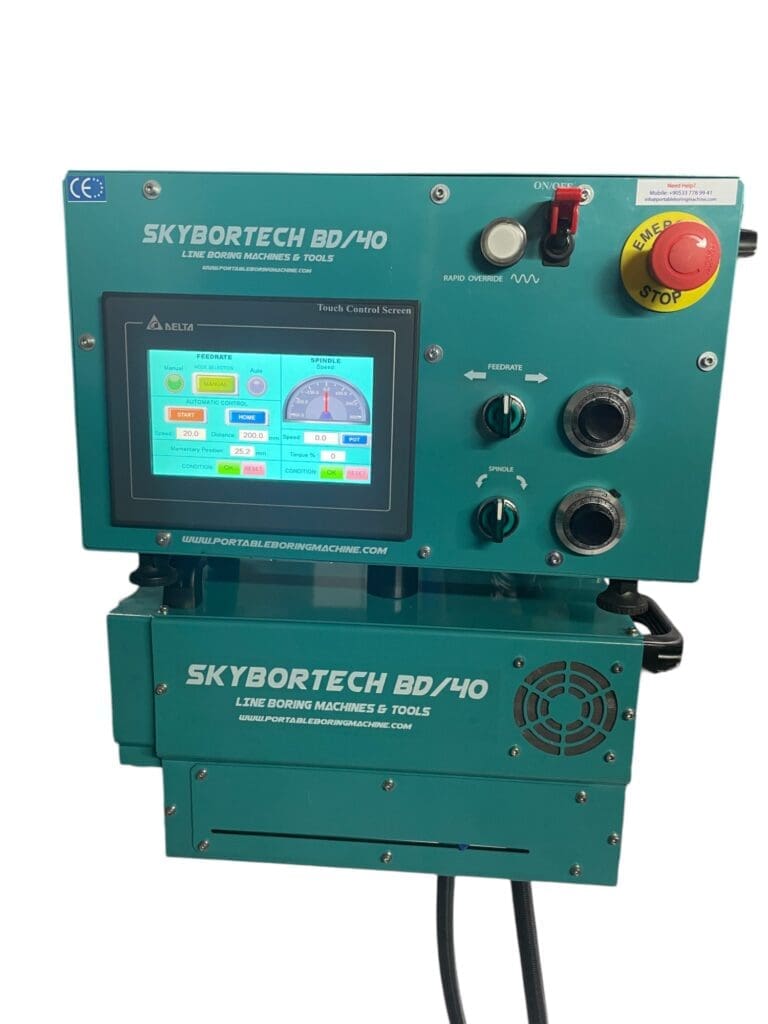

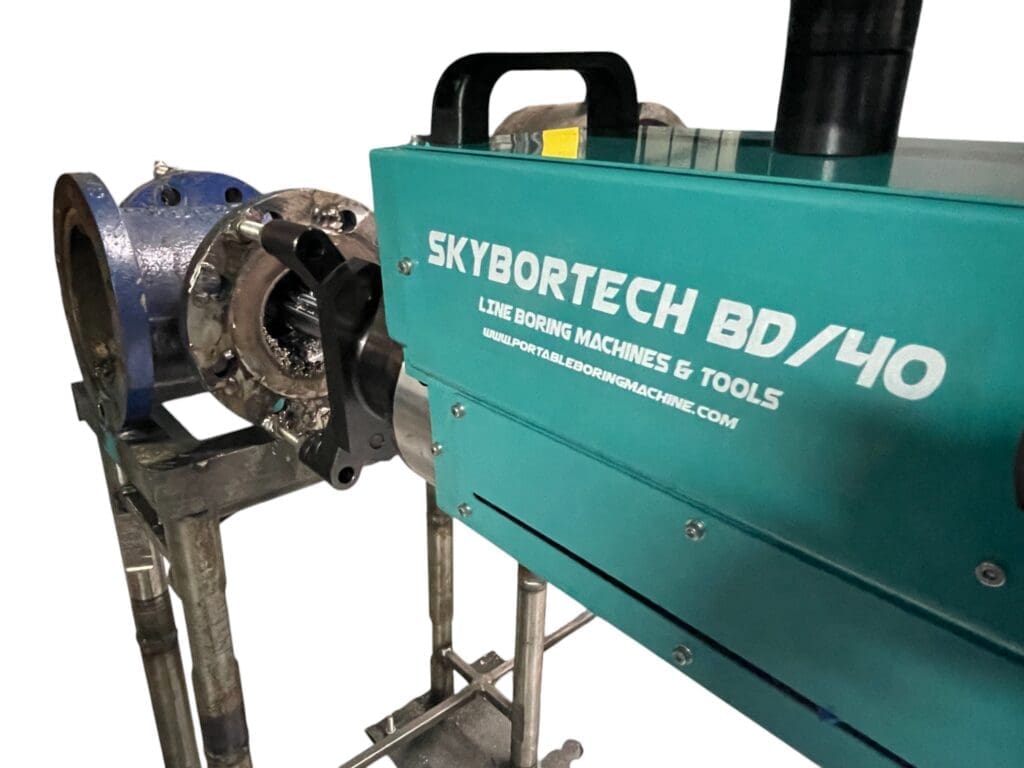

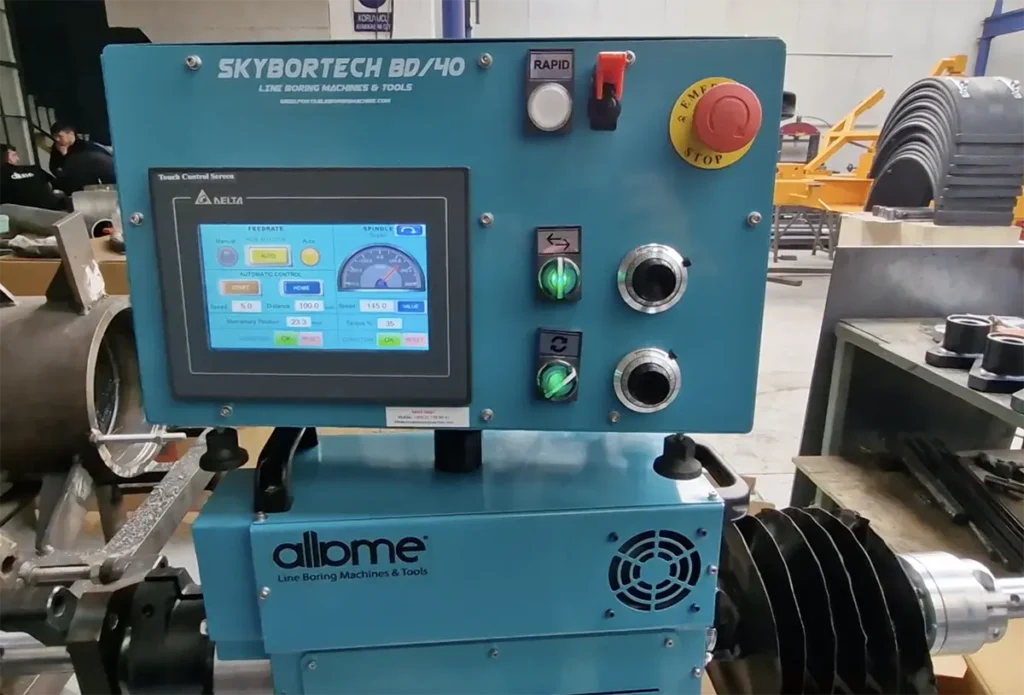

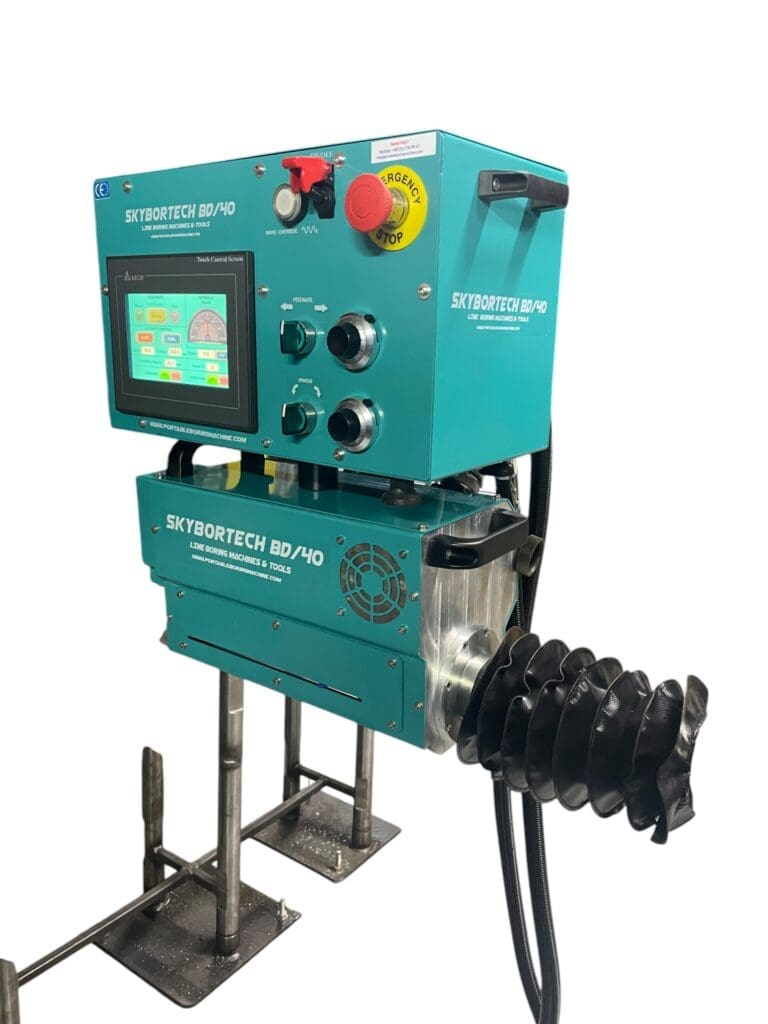

Photos for BD40 Line Boring Machine
